Stainless Handrails
from
not sure yet?
Tell us about your project and we'll guide you.
Integrated LED illumination built into the handrail profile, providing ambient light along the full length of the rail with all cabling concealed within the fitting. SWR supplies LazorTrack by OnLevel: a premium LED handrail system available for wall mounting and glass mounting, in aluminium and wood finishes, with IP66 weatherproof rating for indoor and outdoor use.
LazorTrack is supplied as a complete kit with all components required for installation. Corner accessories, power cables and LED strip are all available separately for longer or more complex runs.

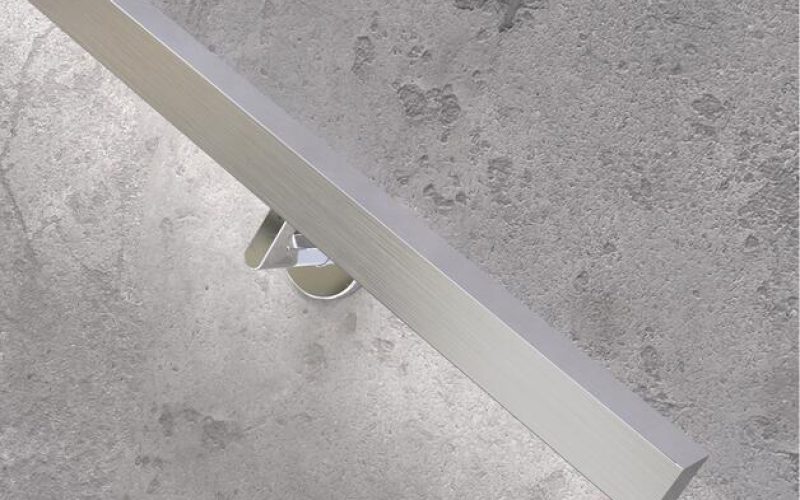

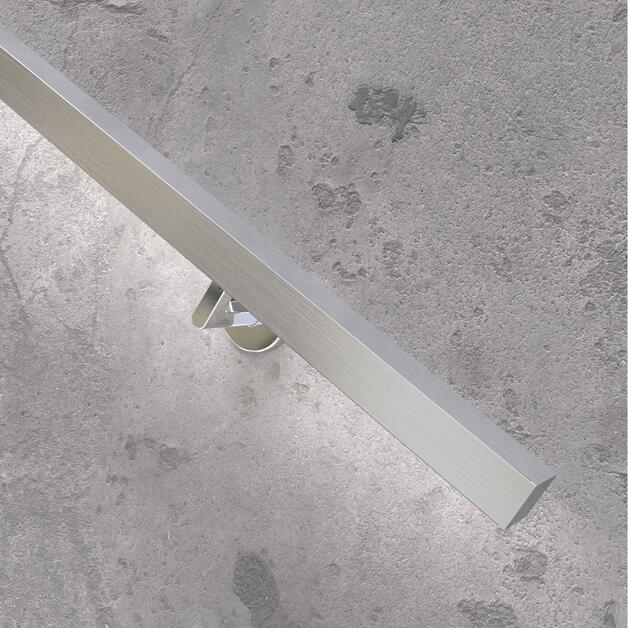

Aluminium handrail profile with integrated LED channel. Available in aluminium or oak wood finish. RAL colour options available. Cables fully concealed within the profile for a clean finish.
24V LED strip, 144 LEDs per metre, 6W per metre, 180 lm per metre. Neutral white, 4000K colour temperature. 80° beam angle. Can be cut to size every 55mm for precise run lengths.
Available for wall mounting (with wall brackets) and glass mounting (sits directly on top of glass panels as a top rail). Both options in the same profile.
Inside and outside 90° corner pieces available in matching oak finish — for L-shaped landings, return staircases and corner details.
24V power supply. Lazortrack power cable, Y-cable and LED strip all available separately for extended runs. Silicone seal available for weatherproofing joints.
Tensioning tool, full installation drawings (PDF + DWG), and a printed quick-reference card.
Specify your LazorTrack run — mounting type, finish, total length and any corner details — and get a full component list and price to your inbox.
Each system below is a complete, specification-ready product set, designed around a specific application and supplied as a matched component kit. Pick the one that fits your project.
INTEGRATED LED · WARM/COOL/RGB · MAINS OR LOW-VOLTAGE
An integrated LED strip concealed within a stainless handrail profile, providing ambient light along the length of the rail with no visible fittings. Available in warm white, cool white and RGB options. Mains or low-voltage power supply. The premium option in our handrail range.
AISI 316 MARINE-GRADE · MULTIPLE STYLES & FINISHES · DOC K COMPLIANT

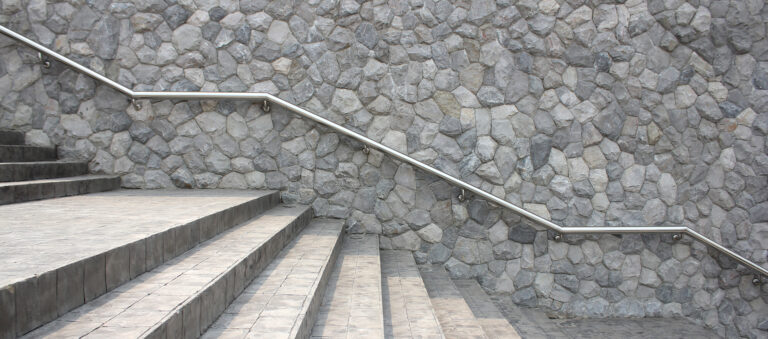

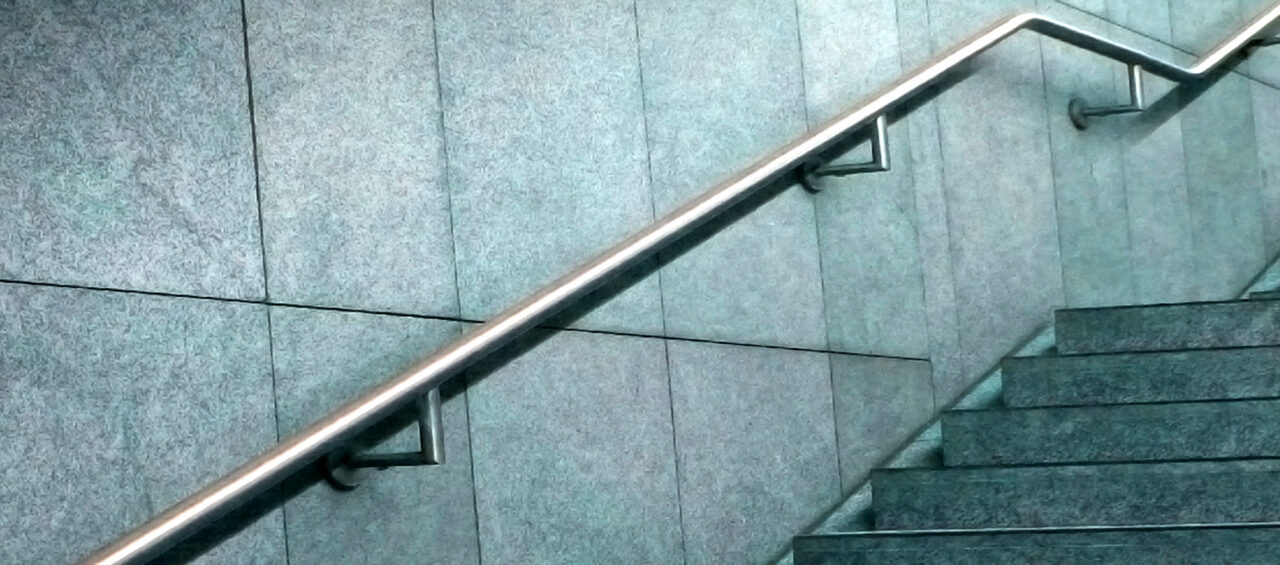

The most ordered handrail in our range. Circular stainless tube with your choice of bracket style, end cap finish and overall length. Engineered to perform and built to last. Multiple lengths available, order to your exact run.
AISI 316 MARINE-GRADE · SATIN/MIRROR FINISH
A channel-profile stainless tube used as a top rail on glass balustrade systems or as a standalone architectural handrail. The slot profile accepts glass panel edges cleanly, making it the natural choice where a handrail sits above a glass infill run.
4mm · diy-friendly · pre-cut to length
Pre-cut, pre-tensioned stainless wire kits for self-builders fitting their own balustrade. Includes wire, tensioners, posts and full installation guide. Quick despatch.
LazorTrack is designed and manufactured by OnLevel to the highest quality standards. IP66 weatherproof protection makes it suitable for indoor and outdoor applications including covered terraces, poolside environments and exposed balconies. All LED cabling is concealed within the handrail profile, with no surface-run cables and no visible conduit. Available in aluminium and oak wood finishes across the full RAL colour range.
Download the specs:
LazorTrack — Product Brochure
LazorTrack — Technical Specification
OnLevel — Full Product Range Brochure
Addenbrookes Hospital required a large-scale balustrade solution that could improve safety while fitting neatly into a busy healthcare setting.
LazorTrack is available in two mounting configurations: wall mounting, where the handrail is fixed to the wall using wall brackets in the standard handrail position; and glass mounting, where the profile sits directly on top of glass balustrade panels as a top rail. Both configurations use the same LazorTrack profile — specify your mounting preference at order stage.
Yes. LazorTrack carries an IP66 weatherproof rating — dust-tight and protected against powerful water jets. It is suitable for covered outdoor use, balconies, poolside environments and exposed locations. Confirm your specific environment at order stage and we’ll advise on any additional weatherproofing requirements.
LazorTrack is available in aluminium finish and oak wood finish. Both are available across the full RAL colour range for custom colour matching to your interior or exterior scheme. Corner accessories (inside and outside 90°) are available in matching oak finish.
LazorTrack uses a 24V LED strip with 144 LEDs per metre, rated at 6W per metre and producing 180 lm per metre. Colour temperature is 4000K — neutral white. Beam angle is 80°. The strip is not dimmable and can be cut to size every 55mm for precise run lengths.
LazorTrack runs on 24V and requires a suitable 24V power supply. All cabling within the handrail run is supplied with the system — a qualified electrician is required to connect the power supply to your mains circuit. For longer or branched runs, Y-cables and extension power cables are available separately.
Tell us your run length, mounting preference, finish and application and we’ll put together a full component list and price. Wall mounted or glass top rail — indoor or outdoor — we’ll spec it correctly.
