Our Horizontal Wire Modular system combines the clean, contemporary appearance of horizontal wire balustrades with a modular design for quicker installation. Suitable for residential and commercial projects, it offers a strong, low-maintenance solution without compromising on style.
A typical Horizontal Wire Modular balustrade includes everything needed for a straightforward installation. Our modular system is manufactured from premium stainless steel components, with additional posts, fittings and accessories available to suit your project requirements.
4mm AISI316-grade marine stainless wire, supplied pre-cut to your run length with built-in tensioning allowance.
42.4mm or 48.3mm round AISI304 or AISI316-grade posts, pre-drilled at 100mm centres for wire fixings.
Designed to pass through intermediate posts, the system has an adjustable rigging srew at one end to take up the slack.
Our most popular modular wire systems come complete with a 42.4mm or 48.3mm handrail.
Heavy-duty stainless steel base plates suitable for concrete, timber or steel substrates.
Tensioning and full installation instructions (PDF). Available to download here.
An interactive tool to design your horizontal wire balustrade. Choose post style, finish, and run length, and receive a fully-specced PDF quote same day.
Used by self-builders, architects and main contractors who want to firm up the spec before talking to our team.
Each of the systems below is a complete product on its own — designed for a specific application, with its own spec, install method and price band. Pick the one that fits your project.
4mm · 100mm centres · post-mounted

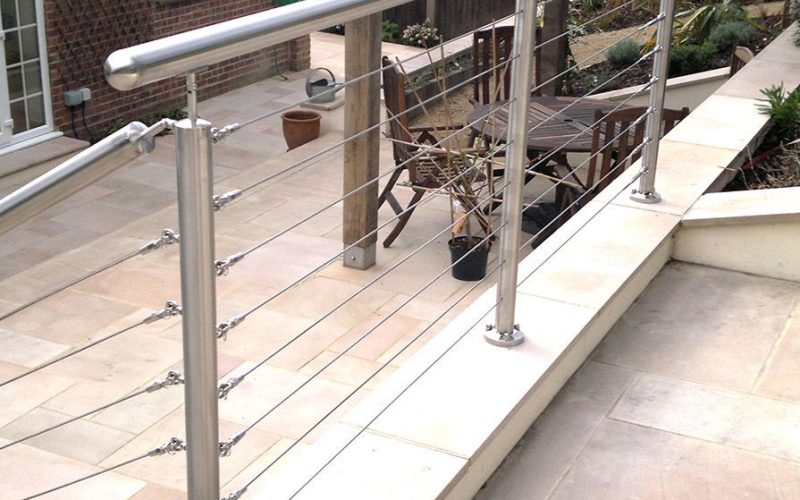

Parallel stainless wires running between round stainless posts. The classic specification is used on the majority of staircase and terrace projects. Number of wires to suit your project or specification.
4MM · 100MM CENTRES · TOP & BOTTOM RAIL

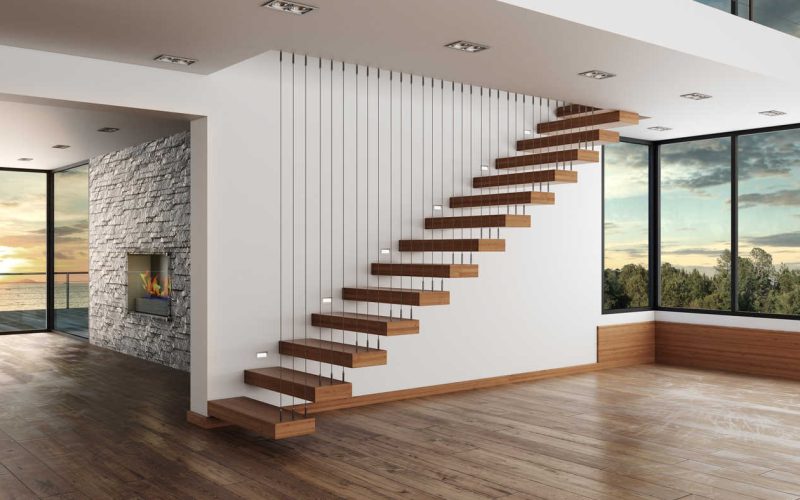

Vertical stainless wire infill between top and bottom rails. A clean, contemporary alternative to horizontal wire, suited to projects where a vertical line is preferred.
4mm · side-fixed · stair stringers
Stainless wire fixed directly to the wall or stair stringer, with no posts in front of the run. Slimmest visual profile of the four systems and a great retrofit option.
4mm · diy-friendly · Made to Measure
Easy to cut to length, pre-tensioned stainless wire kits for self-builders fitting their own balustrade. Includes wire, tensioners, posts and full installation guide. Quick despatch.
Our Vertical Wire Modular system is manufactured from premium stainless steel and designed for strength, durability and long-term performance. Every component is produced to the same high standards as the rest of our balustrade range, ensuring a consistent, high-quality finish across every project.
For further system information please visit out knowledge hub.
One of SWR’s most ambitious installations to date.
Horizontal Wire Modular is ideal for many terraces, balconies and staircases where a clean, contemporary appearance is required. Vertical wire systems are often recommended to prevent climbing. Self-Assembly kits are ideal for timber post installations. If you’re unsure which system is best for your project, send us your drawings or a sketch and our team will be happy to help.
Our Horizontal Wire Modular system is available in high-quality AISI316-grade stainless steel, making it suitable for most coastal and marine environments. Regular cleaning is recommended in exposed locations to maintain the finish.
Yes, we offer both a supply-only and installation service across the UK. Our supply only includes a pre-fabrication option for easy self-installation.
Send us a sketch, a photo of your staircase, or a set of architect’s drawings. You’ll have a detailed wire balustrade quote within one working day.
